Detail Information
Material:	Aluminum Frame+glass Panel	Transparency:	Clear
Customizable:	Size, Accessories	Competitive Price:	Yes
Panel Thickness:	60mm, 100mm	Glass Type:	Strong Tempered Glass
Frame Material:	Aluminum	Advantage:	Competitive Price, Good Service, High Professional, Quality Guarantee
Highlight:	Aesthetic Appeal Movable Solid Partition Wall , Customized Movable Solid Partition Wall

Product Description

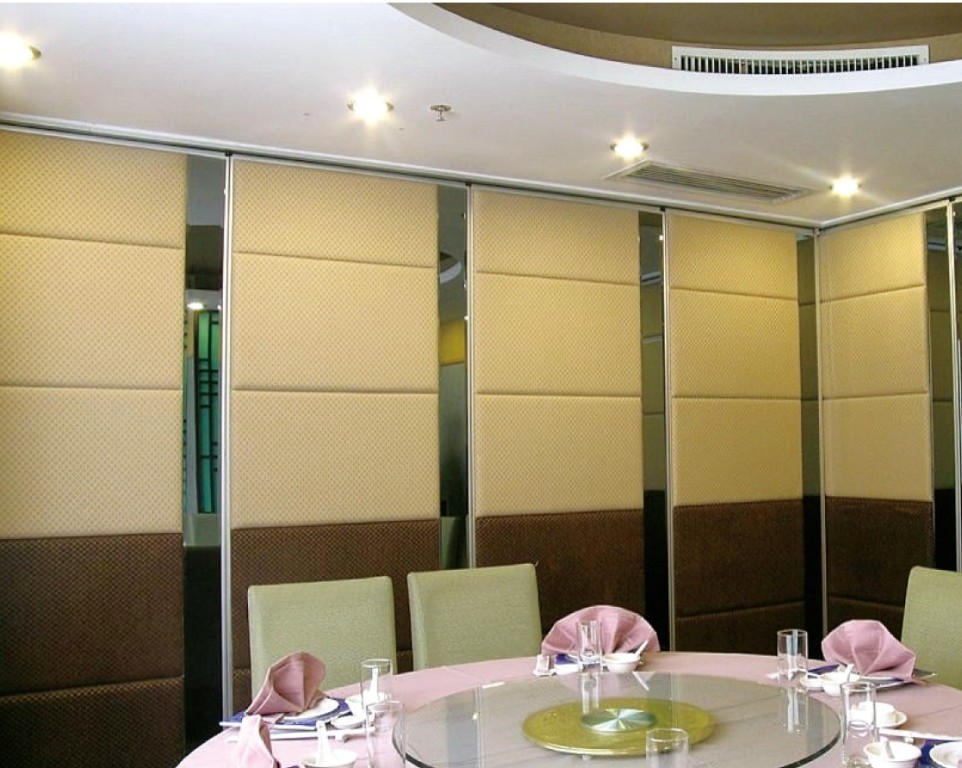

Functionality Aesthetic Appeal Movable Solid Partition Wall Customized Door 0

How to Install a Ceiling-Mounted Movable Partition Wall
Installing a ceiling-mounted movable partition requires precise alignment, proper structural support, and careful assembly to ensure smooth operation. Below is a step-by-step guide for professional installation.

1. Pre-Installation Preparation	✔ Structural Assessment	Confirm the ceiling can support the partition’s weight (consult an engineer if needed).
		Check for obstructions (ducts, beams, lighting) that may interfere with the track.
		Ensure the floor is level (critical for proper alignment).
	✔ Tools & Materials Needed	Tools	Materials
		Laser level	Ceiling track system
		Drill & anchors	Partition panels
		Measuring tape	Trolleys/carriers
		Lifting equipment	Acoustic seals
		Screwdrivers & wrenches	Motorized drive (if automated)

Functionality Aesthetic Appeal Movable Solid Partition Wall Customized Door 1

2. Step-by-Step Installation Process

Step 1: Mark the Track Position	Use a laser level to mark a straight guideline where the track will be installed.
Step 1: Mark the Track Position	Measure panel widths to ensure proper alignment.
Step 2: Install the Ceiling Track	For concrete ceilings: Use heavy-duty anchors (wedge or sleeve anchors).
	For steel structures: Bolt directly into steel beams or use unistrut channels.
	For suspended ceilings: Reinforce with backing bars or a secondary support frame.
Step 3: Mount the Trolleys/Carriers	Attach rolling trolleys to the track at designated intervals (usually every 1-1.5m).
Step 3: Mount the Trolleys/Carriers	Ensure they move smoothly before attaching panels.
Step 4: Lift & Hang the Partition Panels	Use a panel lift or suction handles to safely position panels.
	Secure panels to the trolleys using hanger brackets.
	Check for plumb alignment (panels should hang straight without tilting).
Step 5: Install Bottom Guides (If Needed)	Some systems use floor guides (not full tracks) to prevent swaying.
Step 5: Install Bottom Guides (If Needed)	Ensure guides allow smooth movement without friction.
Step 6: Add Seals & Finishing	Install acoustic seals (top, sides, and bottom) for soundproofing.
Step 6: Add Seals & Finishing	Cover track edges with trim pieces for a clean look.
Step 7: Test & Adjust	Manually slide panels to check for smooth movement.
	Adjust trolley tension if panels drag or wobble.
	For motorized systems, test remote controls & sensors.

Functionality Aesthetic Appeal Movable Solid Partition Wall Customized Door 2

3. Key Considerations for Ceiling-Mounted Systems
✔ Weight Support Requirements

Partition Type	Approx. Weight per m²
Glass partitions	25-40 kg
Solid acoustic panels	30-50 kg
Double-glazed glass	50-80 kg

➔ Ceiling must handle 2-3x the partition’s total weight for safety.

✔ Movement Systems Comparison

Type	Best For	Pro	Cons
Manual push-slide	Light partitions, small spaces	Low cost, simple	Harder to move heavy panels
Motorized	Heavy/extra-high walls	Smooth, automated	Higher cost, needs power
Magnetic levitation	Ultra-smooth movement	Silent, minimal friction	Expensive, rare

✔ Common Mistakes to Avoid
Uneven track installation → Causes jamming
Insufficient ceiling support → Risk of collapse
Poor panel alignment → Gaps in soundproofing
Skipping test runs → Operational failures

Functionality Aesthetic Appeal Movable Solid Partition Wall Customized Door 3

4. Maintenance Tips
Lubricate tracks annually with silicone spray.

Check hanger bolts for loosening over time.

Clean seals to maintain acoustic performance.

Conclusion
Ceiling-mounted movable partitions offer a clean, floor-track-free solution for modern spaces. Proper installation ensures smooth operation, durability, and sound control.

Need recommendations for track systems or motorized drives? Let me know your project specs!

Functionality Aesthetic Appeal Movable Solid Partition Wall Customized Door 4

Functionality Aesthetic Appeal Movable Solid Partition Wall Customized Door 5

Tag:

Product Details:
Place of Origin:	China
Brand Name:	Glawall
Certification:	SGS, ISO 9001,UL, CE
Model Number:	100mm ultrahigh style
Payment & Shipping Terms:
Minimum Order Quantity:	10 square meters
Price:	US$80.00 10 - 99 square meters
Packaging Details:	wooden package
Delivery Time:	2-3 weeks
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	3000 square maters per month
