Detail Information
Material:	Aluminum Frame+glass Panel	Transparency:	Clear
Customizable:	Size, Accessories	Competitive Price:	Yes
Panel Thickness:	60mm, 100mm	Glass Type:	Strong Tempered Glass
Frame Material:	Aluminum	Advantage:	Competitive Price, Good Service, High Professional, Quality Guarantee

Product Description

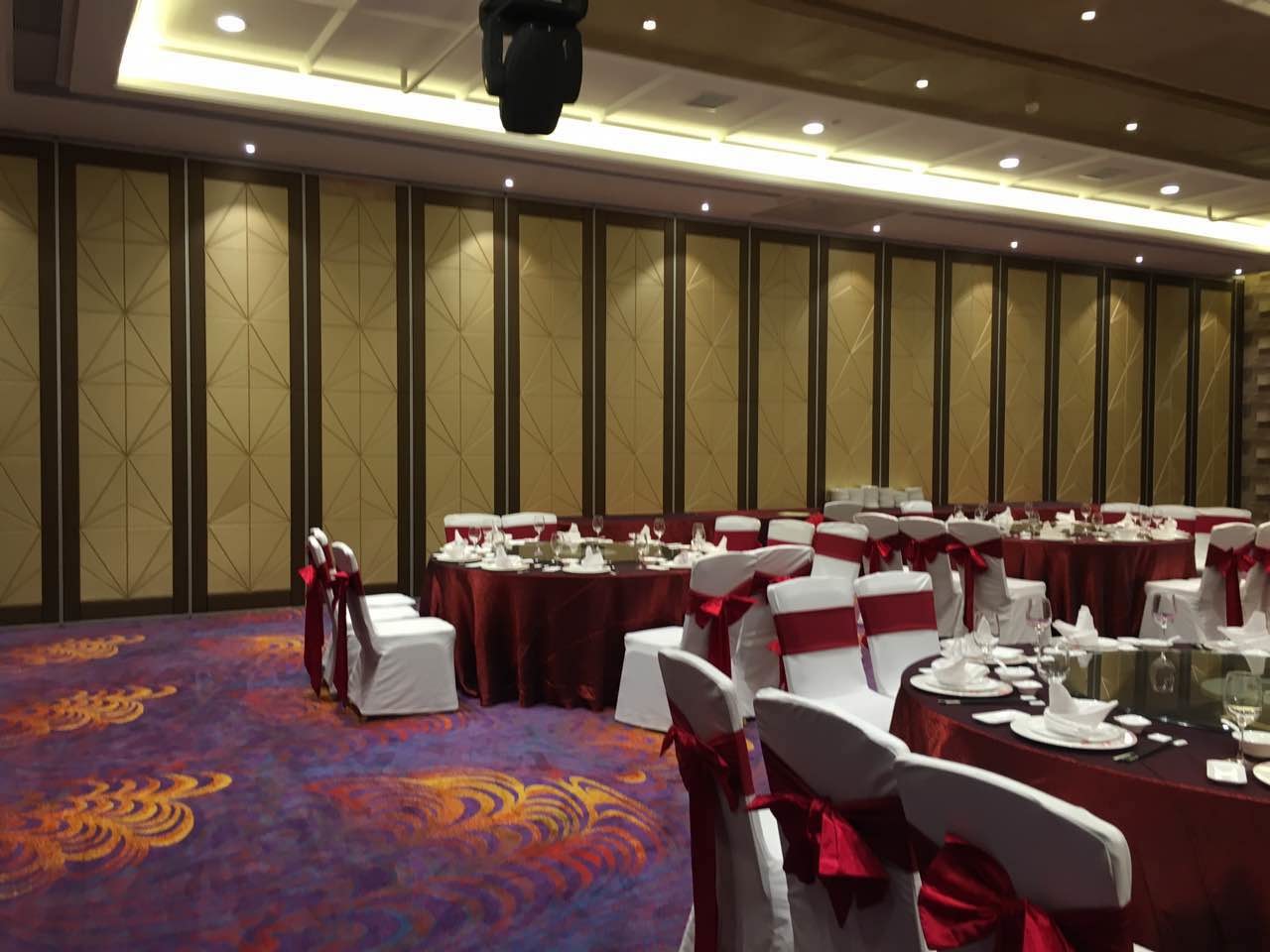

Extra-high movable partition walls with installation guide soundproof movable wall 0

Installation Guide for Extra-High Movable Partition Walls (4m+ Height)

Installing extra-high movable partition walls (4 meters or taller) requires careful planning, structural reinforcement, and precision to ensure smooth operation and long-term stability. Below is a step-by-step guide for professional installation.

1. Pre-Installation Planning
A. Site Assessment & Measurements	Verify ceiling height and ensure the space can accommodate the partition system.
	Check floor and ceiling load-bearing capacity (extra-high walls are heavier).
	Identify obstructions (beams, HVAC ducts, lighting fixtures) that may interfere with tracks.
B. Design & Engineering	Custom-track design (straight, curved, or corner-turning) based on space requirements.
	Decide between ceiling-hung, floor-supported, or dual-track systems (recommended for heights >5m).
	Decide between ceiling-hung, floor-supported, or dual-track systems (recommended for heights >5m).
C. Required Tools & Materials	✔ Laser level & measuring tools
	✔ Heavy-duty drill & anchors
	✔ Track system (aluminum/steel)
	✔ Motorized drive system (if automated)
	✔ Sealants & acoustic gaskets
	✔ Lifting equipment (for large panels)

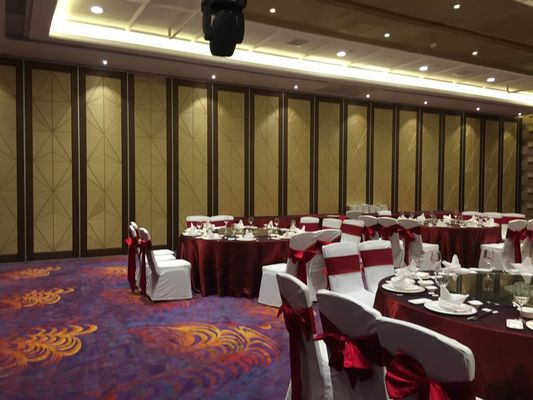

Extra-high movable partition walls with installation guide soundproof movable wall 1

2. Installation Steps
Step 1: Ceiling & Floor Preparation	For ceiling-hung systems	Reinforce the ceiling with steel backing or additional supports.
	For floor-supported systems	Ensure a perfectly level floor; use shims if needed.
	For dual-track systems	Both ceiling and floor must be aligned precisely.
Step 2: Track Installation	Straight tracks	Mount the upper track first using laser leveling for perfect alignment.
		Secure with heavy-duty anchors (concrete or steel).
		Install lower guide track (if floor-supported).
	Curved/corner tracks	Requires custom-engineered curved rails.
		Test movement before panel installation.
Step 3: Panel Installation	Use a panel lift or suction handles to safely position tall panels.
	Attach panels to the trolleys/hangers in the track.
	Ensure panels interlock properly for acoustic sealing.
Step 4: Motorization & Automation (If Applicable)	Install motorized drive units (chain, belt, or gear-driven).
	Set up control systems (remote, touch panel, or smartphone app).
	Test safety sensors (obstruction detection, emergency stop).
Step 5: Sealing & Finishing	Apply acoustic seals (top, bottom, and between panels).
	Install end caps and covers for a clean finish.
	Test multiple opening/closing cycles for smooth operation.

Extra-high movable partition walls with installation guide soundproof movable wall 2

3. Post-Installation Checks
✅ Structural Stability – No wobbling or misalignment.
✅ Smooth Movement – No jerking or sticking.
✅ Soundproofing Test – Check for air gaps or leaks.
✅ Safety Features – Sensors and emergency stop working.

4. Common Challenges & Solutions

Issue	Solution
Panel misalignment	Recheck track leveling with a laser.
Motor jamming	Ensure proper voltage and lubrication.
Noise during movement	Adjust rollers or replace worn bearings.
Gaps in soundproofing	Add extra seals or adjust panel alignment.

5. Maintenance Tips
Lubricate tracks & rollers annually.

Inspect seals for wear and tear.

Test automation systems periodically.

Conclusion
Installing extra-high movable partition walls requires precision engineering, reinforced structures, and professional handling. When done correctly, they provide seamless, soundproof, and automated space division for large venues.

Need a recommended supplier or detailed technical specs? Let me know!

Extra-high movable partition walls with installation guide soundproof movable wall 3

Tag:

Product Details:
Place of Origin:	China
Brand Name:	Glawall
Certification:	SGS, ISO 9001,UL, CE
Model Number:	100mm ultrahigh style
Payment & Shipping Terms:
Minimum Order Quantity:	10 square meters
Price:	US$80.00 10 - 99 square meters
Packaging Details:	wooden package
Delivery Time:	2-3 weeks
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	3000 square maters per month
