Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | Glawall |
Certification: | SGS, ISO 9001,UL, CE |
Model Number: | framed |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 10 square meters |
Price: | US$80.00 10 - 99 square meters |
Packaging Details: | wooden package |
Delivery Time: | 2-3 weeks |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
Supply Ability: | 3000 square maters per month |
Detail Information |
|||
Fire Resistance: | Non-combustible | Application: | Office, Conference Room, Etc. |
---|---|---|---|
Maintenance: | Easy To Clean | Frame Material: | Aluminum |
Installation Method: | Wall-mounted | Design Style: | Modern |
Sound Insulation: | High | Transparency: | Clear |
High Light: | single double glass partition wall,flexible glass partition wall,90mm thickness glass partition wall |
Product Description

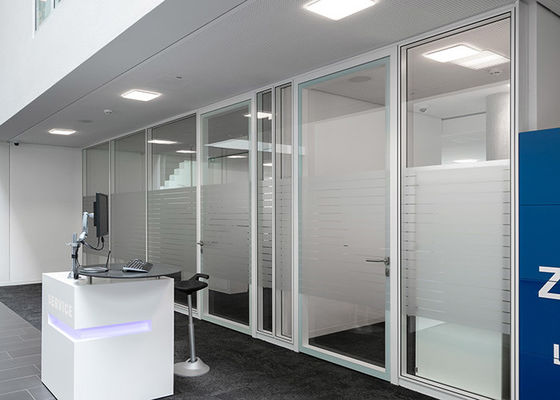

90 models of clear frame glass partitions
Design parameters | Wall thickness: 90mm |
Appearance glass bead width | 24mm |
Through-plate module size ≤W*H=1.1m*3m. | |
Frame structure | The wall frame adopts an all-aluminum alloy GB-6063-T5 tight-fitting connection mechanism, 3.0mm stamped galvanized steel plate connectors are used to connect the profiles, and ST4.2mm drill tail screws are used between the profiles. The overall skeleton is a "well" shaped mesh structure. |
Number of panel systems | 2*5/6/12mm tempered glass panel, or 2*12mm solid MFC panel/solid composite steel plate. |
Cabling system | Aluminum alloy cabling column, with a width of 122mm, the inner and outer buckle covers can be opened, and standard panels such as lamps, air conditioners, and access control systems can be installed. It can also be used for comprehensive wiring and outlet processing at the bottom of the wall. |
Sound insulation coefficient | 90 style double glass wall P=47dB |
90 style double panel wall P=52dB | |
This model can be designed for curved and circular walls, divided with a radial angle of 5 degrees, and the width of the vertical keel strips is 23/30mm. |
90 models of single glass
Product material: wall frame aluminum alloy. Has good corrosion resistance
Product structure: all-aluminum frame, single-layer glass, mainly 8-12mm tempered clear glass;
Wall specifications: wall thickness 90mm;
Glass thickness: 8-12mm;
Conventional practice: height from one grid to the top or multiple grids;
Scope of application: Enterprises and institutions, government agencies, high-end office space partitions, etc.;
Product style: Strongly advocates flexible space design, new template disassembly and assembly product functions and environmental protection for repeated use, perfectly combining corporate culture, humanized features and indoor environment, thereby creating a harmonious living space and work, exquisite system content With casual and restrained luxury functions, it extends in various spaces, showing the life form of a high-level spatial environment, and has a purely aristocratic chauvinistic cultural atmosphere in Great Britain.
90 models of double glass
Product material: wall frame aluminum alloy. Has good corrosion resistance
Product structure: all-aluminum frame, double-layer tempered clear glass, built-in matching brand-name blinds, the glass and frame are fixed with strips;
Wall specifications: wall thickness 90mm;
Glass thickness: 5mm+5mm;
Conventional practice: Divide the height into two grids or one grid to the top;
Scope of application: high-end office space partitions, commercial partitions, home partitions, store decorations, public corridors, exhibition hall layouts, elevator rooms, etc.;
Product style: thick and atmospheric;
