Product Details:
|
|
Place of Origin: | Guangdong, China |
---|---|
Brand Name: | Glawall |
Certification: | TUV, SGS, ISO 9001 |
Model Number: | 108 series |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 10㎡ |
Price: | USD 30-110/㎡ |
Packaging Details: | Bubble film and paper package |
Delivery Time: | 15-30 days |
Payment Terms: | T/T, L/C, Western Union, Paypal |
Supply Ability: | 3000㎡/month |
Detail Information |
|||
General Use: | Commercial Office Building | Main Charateristic: | Rounded Edge Corner |
---|---|---|---|
Glass: | Single Or Double Glass Optional | Materials: | Anodized Aluminum And Glass |
Size: | Customized Size | Characteristic: | Full Glass Design |
Aluminum Color: | Mininum Aluminum Frame Visible | Tolerance: | Top And Bottom +-7mm |
Partition Thickness: | 90, 108mm Thick | Sound Insulation: | 45-48db |
Connection: | Special Adhesive Tape, Silicone | ||
Highlight: | Customized Frameless Glass Partitioning,Glazed Frameless Glass Partitioning,Customized Interior Glazed Partition Systems |
Product Description

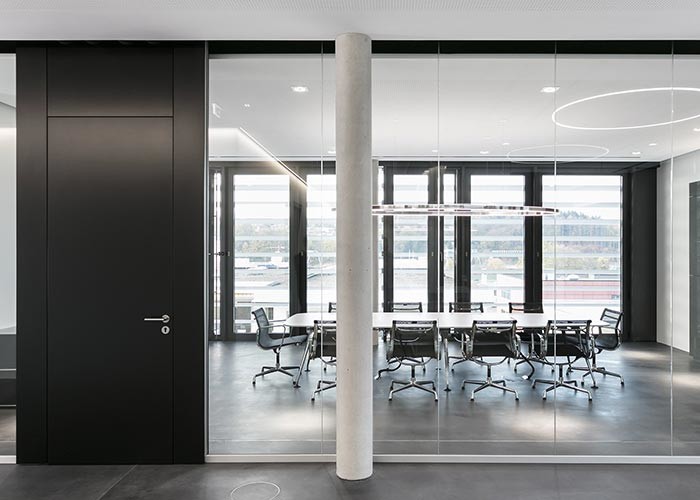

Frameless Glass Partitioning Slim Frame Glazed Partitions Frameless Glazed Wall System In Rounded Edge
Glawall’s frameless glazed and solid partitions allow maximum flexibility to create inspiring environments, with angular or curved profiles in metallic finishes in any BS or RAL colour. These systems have the ability to integrate with other solutions to deliver total design freedom and peace of mind over performance requirements.
We provide you with current projects, ideas, planning data and details of your specifications online on our website. Flexible, easy to clean and acoustically effective on request - solid wall system GW108 combined with glass elements T35 and sonic 10 acoustic elements, micro-perforated. With integrable technology and standard hook-in devices for attaching organizational elements.
Glass partition system with flush-mounted frame glazing in a modular design. Skylight, parapet and all-glass walls are possible. Also available with additional central glazing in F30 / EI30 for fire protection requirements.
With flush double-glazing. On request in the space between the panes with internal,
electrically operated blinds. Partition wall system T34 EI30, with flush glazing and central fire protection pane. Here in combination with tested fire protection doors. Single or double leaf versions are possible.
Characteristic
Construction options |
Fully transparent glass wall partition |
Design features |
Minimizing aluminum area |
Visible width of aluminum | 35mm in top and bottom (mininum) |
Glass thickness | Double 12mm clear tempered glass |
Application | Office and conference room, interior building, office room |
Panel thickness | 108 mm thick |
Combineable wall panel | Metal panel, wooden panel |
Fire resistance | Up to 120 min |
Soundproof performance | Up to STC 48 db |
Door Accessories | Electronic lock available |
Welcome to Glawall partition, the specialist for partition wall systems and high-quality interior fittings. We invite you to discover the variety of individual uses of our room-forming system partitions. On the following pages you will find ideas and suggestions for the design of your projects.
