Detail Information
Max Width:	60''	Max Height:	12'
Style:	Modern Style	Materials:	Anodized Aluminum And Glass
Size:	As Per Drawing Design	Characteristic:	Full Glass Design With Single Or Double
Aluminum Color:	Black, Gray, Sliver And Etc	Door:	Timber Wooden Door
Partition Thickness:	90, 108mm Thick	Sound Insulation:	42-45db
Connection:	Special Adhesive Tape
High Light:	Solid Timber Wooden Door Partition Wall , Safety Laminated Glass Frameless Partition Wall

Product Description

Toughened safety laminated glass frameless partition wall

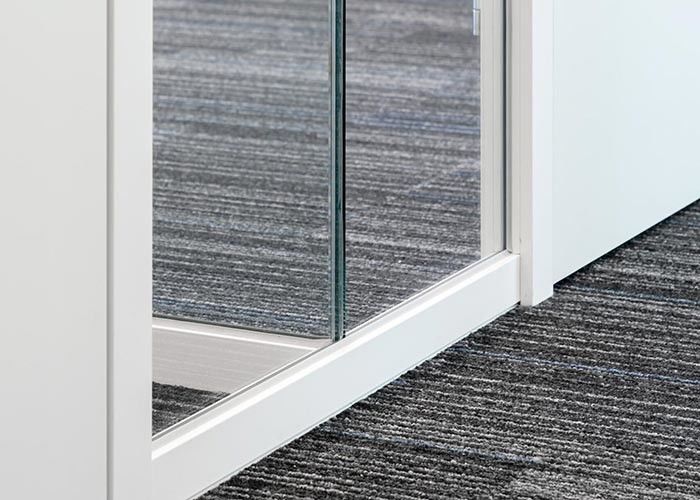

Toughened Safety Laminated Glass Frameless Partition Wall With Solid Timber Wooden Door 0

1000mm W x 2800mm to 3000mm Glass Door with full accessories. The single plate glass door is a toughened safety clear or frosted glass of 6 mm thickness enclosed in aluminium tubular frame of 60mm X 16 mm. Total thickness of the door 60 mm

The door is equipped with a lower moving up and down skirting with the function of soundproof and as an anti dust barrier that when the door is closed fills the gap between the door and the floor. The hinges are two or three in according to the height of the door and they are fitted at the vertical side of the glass and they allow an opening of 180° degrees. A double extruded PVC gasket is inserted in the groove of the frame as a seal to the door. The door is equipped with a “ECO” lock installed at 900 mm from ground level and a metal handle in silver colour as are the roses and the cylinder, having an acceptable shape for disabled persons 100mm thk.

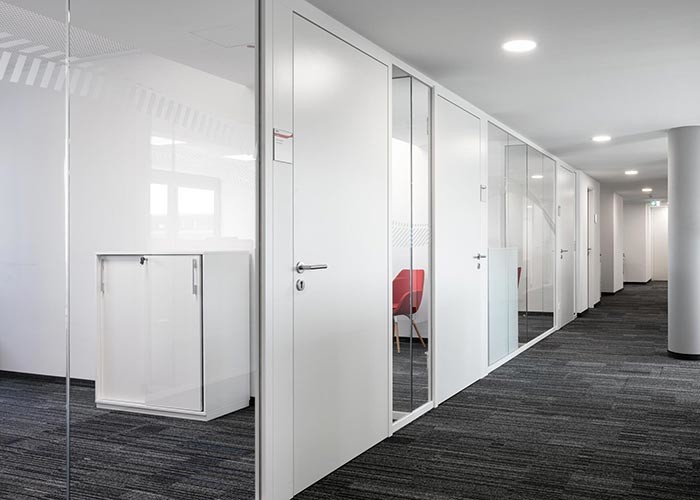

Toughened Safety Laminated Glass Frameless Partition Wall With Solid Timber Wooden Door 1

Characteristic

Maximum Glazing Panel Width	60"
Maximum Glazing Panel Height	Full height up to 12'-0"
Glazing Available	1/2", 9/16", 5/8", 11/16", 3/4" & 13/16"
Available Glazing Types	Clear Tempered, Low Iron, Laminated & LCD Privacy Glass
Application	Office and conference room
Panel thickness	108 mm
Measurement	Depending on materials used
Standard Frame Finishes Available	Standard up to 1250mm
Custom Frame Finishes Available	Standard up to 3500mm
STC Rating	Max STC up to 40

Technical details

This frameless glass wall system is engineered to meet the technical specifications of Architects and Design professionals. Some features include: full height floor to ceiling applications, faceted or curved configuration options, custom graphics and textures, high quality hardware and fittings.

full view glass partition door options

Tag:

Product Details:
Place of Origin:	Guangdong, China
Brand Name:	Glawall
Certification:	TUV, SGS, ISO 9001
Model Number:	108 series
Payment & Shipping Terms:
Minimum Order Quantity:	10㎡
Price:	USD 30-110/㎡
Packaging Details:	Bubble film and paper package
Delivery Time:	15-30 days
Payment Terms:	T/T, L/C, Western Union, Paypal
Supply Ability:	3000㎡/month
