Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | Glawall |
Certification: | SGS, ISO 9001,UL, CE |
Model Number: | 108mm thickness Aluminum frameless curved glass |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 10 square meters |
Price: | US$80.00 10 - 99 square meters |
Packaging Details: | wooden package |
Delivery Time: | 2-3 weeks |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union |
Supply Ability: | 3000 square maters per month |
Detail Information |
|||
Material: | Aluminum Frame+glass Panel | Transparency: | Clear |
---|---|---|---|
Customizable: | Size, Accessories | Competitive Price: | Yes |
Glass Thickness: | 12mm | Glass Type: | Strong Tempered Glass |
Frame Material: | Aluminum | Advantage: | Competitive Price, Good Service, High Professional, Quality Guarantee |
Highlight: | Customized Size Soundproof Glass Partition,Soundproof Glass Partition |
Product Description
Full Curved Glass Partition Wall: Design & Technical Details

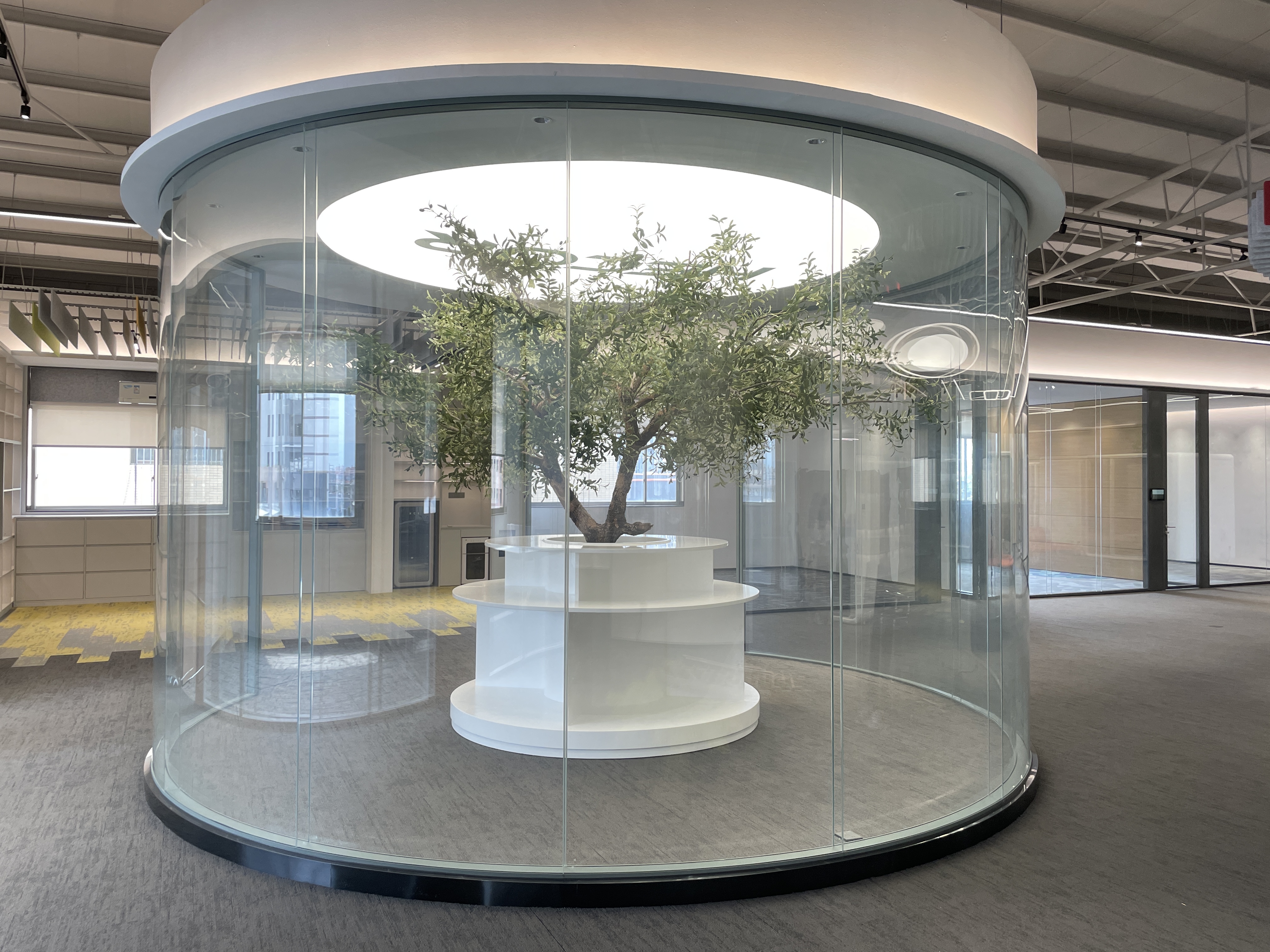

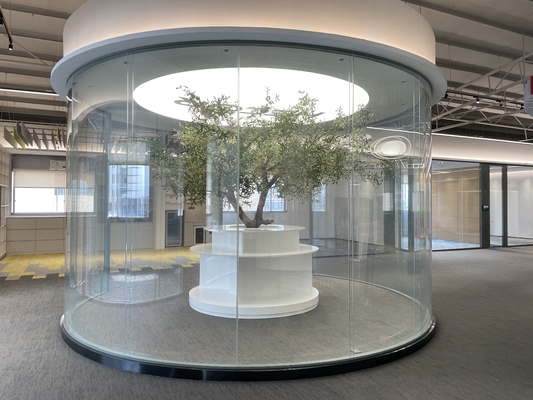

A full curved glass partition wall creates a seamless, 360° enclosure, offering an open yet defined space with a luxurious, modern aesthetic. These partitions are used in offices, hotels, retail spaces, and high-end residences for both privacy and visual appeal.
1. Key Design Features
A) Structural Components
Element | Description |
Curved Glass Panels | Tempered or laminated glass, bent to the desired radius (typically 5m–20m min. bend radius). |
Framing System | Minimal aluminum/stainless steel frames or fully frameless (clamp-based) designs. |
Joints & Connectors | Silicone sealants or structural glazing for smooth transitions. |
Doors (if needed) | Pivot or sliding doors with curved matching glass. |
B) Glass Specifications
Thickness: 8mm–12mm (tempered/laminated for safety).
Coating Options:
Frosted/etched (for privacy).
Tinted/reflective (UV/sun control).
Switchable smart glass (privacy on demand).
Edge Finishes: Polished, seamed, or custom-shaped edges.
C) Curve Types
Single-Axis Curve (C-shaped or semi-circle).
Compound Curve (3D bending for complex shapes).
Full 360° Enclosure (Circular/oval rooms).
2. Installation Process
Step 1: Design & Engineering | Laser scanning of the space for precise measurements. |
Structural analysis to ensure glass can withstand wind/load pressures. | |
Step 2: Glass Fabrication | Heat bending in a kiln or cold bending (for tighter curves). |
Lamination (if needed) for safety and soundproofing. | |
Step 3: Framing & Support | Steel/aluminum substructure for stability (hidden if frameless). |
Floor & ceiling channels to secure glass panels. | |
Step 4: Assembly | Dry-fit panels to check alignment. |
Silicone sealing for waterproofing and smooth joints. |
3. Advantages of Full Curved Glass Partitions
360° Transparency | Maintains open sightlines while defining space. |
Modern Aesthetic | Sleek, futuristic look with no sharp edges. |
Natural Light Flow | Curves diffuse light beautifully. |
Acoustic Control | Laminated glass reduces noise transfer. |
Customization | Frosting, tints, and digital printing available. |
4. Applications
Executive Offices (Circular meeting pods).
Luxury Retail Displays (Jewelry/showcase rooms).
Hotel Lobbies & Restaurants (VIP enclosures).
Residential Dividers (Curved glass rooms in open-plan homes).
5. Challenges & Solutions
Challenge | Solution |
High Cost | Use cold bending for tighter budgets. |
Transport Risks | Ship in plywood crates with foam lining. |
Installation Complexity | Hire specialized glazing contractors. |
Conclusion
A full curved glass partition wall is a statement piece that combines functionality and high-end design. Perfect for spaces needing elegance without visual barriers, it requires precision engineering but delivers unmatched sophistication.
Need help with a specific project’s dimensions or glass type? Let me know!
Our production time is approximately 3 to 4 weeks. This allows for sufficient time to manufacture the products with quality and attention.
Regarding the transportation terms, we offer a variety of options. EXW (Ex Works) means the buyer takes responsibility for transportation from the seller's premises. FOB (Free on Board) transfers responsibility to the buyer once the goods are on board the ship at the port of departure. CIF (Cost, Insurance and Freight) includes the cost of the goods, insurance, and freight to the destination port. DDU (Delivered Duty Unpaid) delivers the goods to the buyer's specified location without the payment of customs duties. DDP (Delivered Duty Paid) includes the delivery of the goods with all duties paid to the buyer's location. This diverse range of transportation terms gives our customers flexibility and choice to meet their specific needs and preferences.
Factory address: No.3 Sanheng Road, Xiqiao Industrial Zone, Shatou Village, Jiujiang Town, Nanhai District, Foshan City, Guangdong Province.
Welcome to visit our factory
