Packing Curved Glass with Plywood Carton: Best Practices
Since curved glass is custom-shaped and fragile, proper packing is crucial to prevent breakage, scratches, or stress fractures during transit. Using an independent plywood carton ensures maximum protection. Here’s how to do it right:
1. Why Use a Plywood Carton for Curved Glass?
Rigid Protection – Plywood resists bending and crushing better than cardboard.
Moisture Resistance – Treated plywood prevents humidity damage.Custom Fit – Can be built to match the exact curvature of the glass.
Shock Absorption – When combined with cushioning, it minimizes vibration damage.

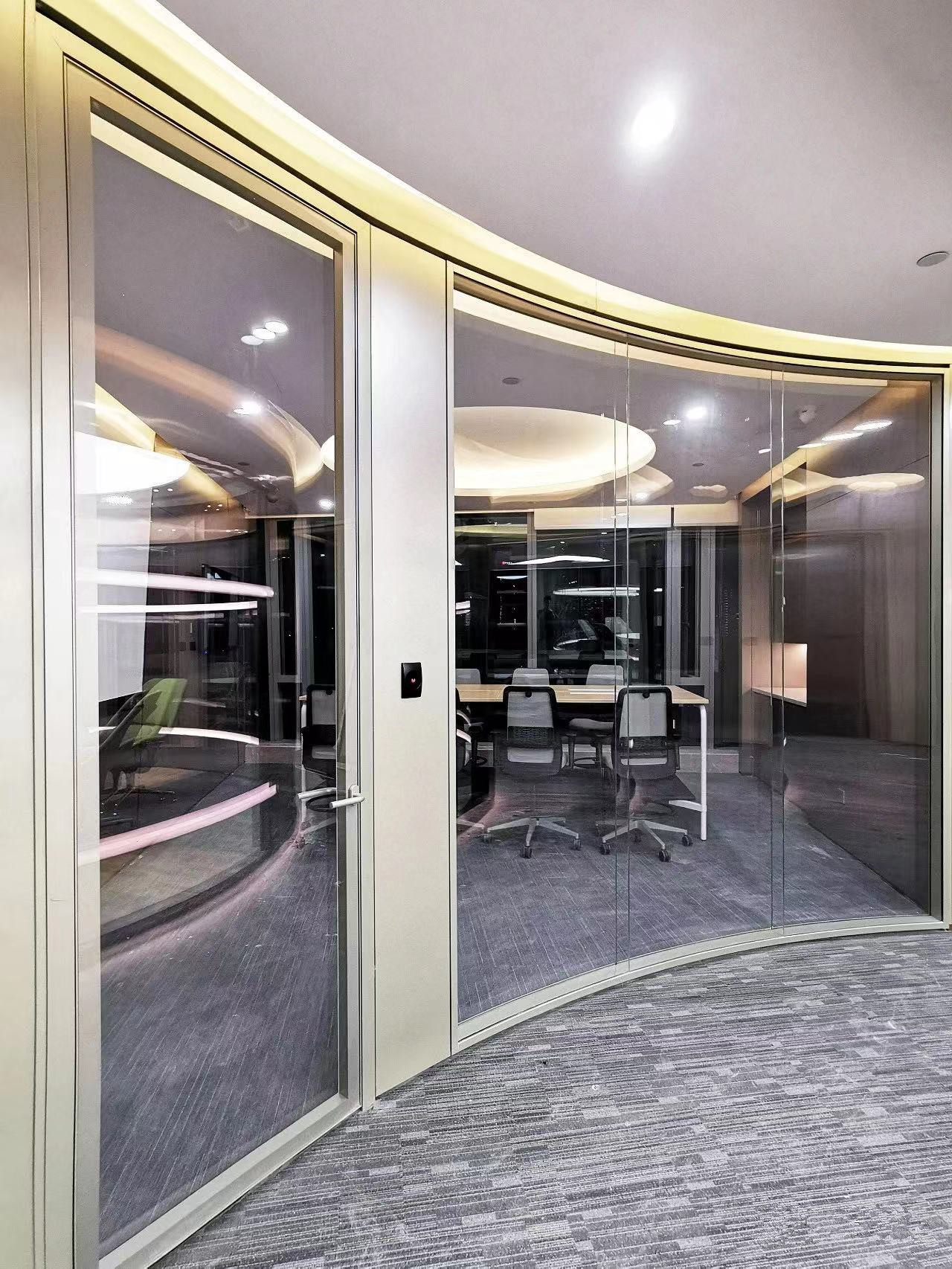

Curved glass partitions have the following salient features:
| Unique beauty |
Its smooth curved lines add an elegant and smart atmosphere to the space. It is highly decorative and can create a unique visual effect. |
| Soft vision |
Compared with linear partitions, arc-shaped partitions can bring a softer visual experience and reduce the stiffness of the space. |
| Space utilization |
It can be customized according to the specific shape of the space to better adapt to irregular areas and make full use of the space. |
| Increase lighting |
The glass material itself is conducive to the transmission of light, and the arc design can make the light distribution more even. |
| Create atmosphere |
It can create a warm, romantic or fashionable space atmosphere and enhance the style of the overall environment. |
| Complex process |
Due to its special shape, the production and installation process are relatively more demanding, and the cost may also be slightly higher. |
| High stability requirements |
It is necessary to ensure that the installation is firm to ensure safety and stability during use. |
2. Step-by-Step Packing Method
A) Materials Needed:
5–12mm thick plywood sheets (depending on glass weight)
High-density foam or EPE (Expanded Polyethylene) sheets
Bubble wrap or soft cloth wrapping
Strapping bands (plastic or steel)
Corner protectors (plastic or foam)
Waterproof packing tape
Fragile stickers & handling instructions
B) Packing Process:
| Wrap the Glass Individually |
Cover the entire glass surface with bubble wrap or soft cloth to prevent scratches. |
| For extra protection, use anti-static film (if shipping sensitive coated glass). |
| Secure Edges & Corners |
Attach foam corner protectors to prevent chipping. |
| Reinforce edges with extra foam strips. |
| Build the Plywood Carton |
Laser-cut plywood to match the glass curvature (minimize gaps). |
| Line the interior with 5–10mm EPE foam for cushioning. |
| Use 2–3 layers of plywood for heavy glass (laminated for strength). |
| Place Glass Inside & Seal |
Insert the wrapped glass into the plywood casing. |
| Fill any gaps with foam peanuts or air cushions to prevent movement. |
| Seal with steel/plastic strapping (avoid over-tightening). |
| Final Weatherproofing |
Wrap the entire carton in waterproof plastic if shipping overseas. |
| Label with "Fragile – This Side Up" and "Do Not Stack" warnings. |
3. Advantages of Independent Plywood Carton Packing
✔ Prevents Flexing – Unlike cardboard, plywood won’t bend under pressure.
✔ Customizable – Can be designed for single or multiple glass panels.
✔ Reusable – High-quality plywood crates can be reused for returns.
✔ Safer for Long-Distance Shipping – Ideal for air, sea, or road freight.
4. Alternative Packing Methods (Comparison)
| Method |
Best For |
Pros |
Cons |
| Plywood Carton |
High-value curved glass |
Maximum protection, reusable |
Higher cost, heavier |
| Double-Wall Corrugated Box |
Small curved pieces |
Lightweight, cheaper |
Less crush-resistant |
| Wooden Crate with Foam |
Heavy/large curved glass |
Extremely durable |
Bulky, expensive |
| A-Frame Packing (for multiple panels) |
Batch shipping |
Saves space |
Risk of glass-to-glass contact |
5. Key Tips for Safe Shipping
Always transport vertically (never lay curved glass flat).
Use shock sensors to monitor rough handling.
Avoid extreme temperatures (thermal stress can crack glass).
Insure high-value shipments in case of rare breakage.
Conclusion
Packing curved glass in an independent plywood carton is the safest method for shipping or storage. By combining rigid plywood, cushioning foam, and secure strapping, you minimize the risk of damage. For international shipments, adding waterproofing and proper labeling ensures safe delivery.
