Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | Glawall |
Certification: | SGS, ISO 9001,UL, CE |
Model Number: | steel partition wall fire resistance |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 10 square meters |
Price: | US$80.00 10 - 99 square meters |
Packaging Details: | wooden package |
Delivery Time: | 2-3 weeks |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union |
Supply Ability: | 3000 square maters per month |
Detail Information |
|||
Material: | Aluminum Frame+glass Panel | Transparency: | Clear |
---|---|---|---|
Customizable: | Size, Accessories | Competitive Price: | Yes |
Glass Thickness: | 10mm, 12mm | Glass Type: | Strong Tempered Glass |
Frame Material: | Aluminum | Advantage: | Competitive Price, Good Service, High Professional, Quality Guarantee |
Highlight: | HPL steel solid panel partition wall,Partition wall steel solid panel |
Product Description

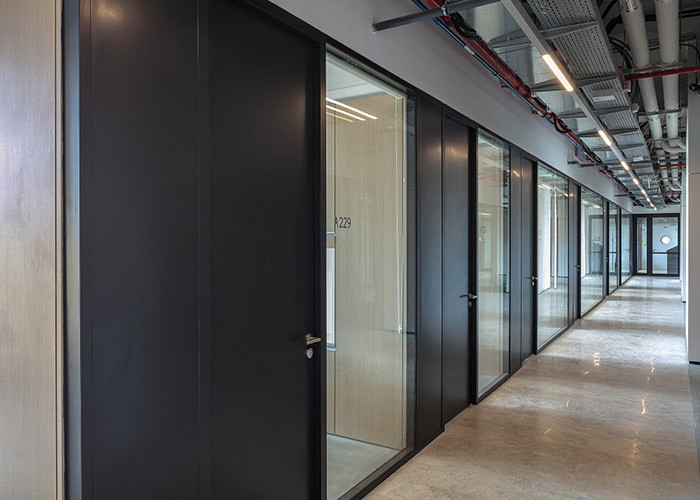

Steel Plate Partitions: The Ultimate Industrial-Grade Space Solution
Glawall’s steel plate partitions combine unmatched durability with sleek modern design, offering a robust alternative to traditional glass or drywall dividers. Engineered for high-traffic and security-focused environments, these systems deliver performance, safety, and style in one package.
Key Features & Benefits
1. Industrial-Strength Durability | ✔ Material: 1.5–3mm cold-rolled steel (galvanized or powder-coated) | |
✔ Load Capacity: Supports up to 500kg/m² (ideal for heavy shelving/equipment) | ||
✔ Lifespan: 30+ years with minimal maintenance | ||
2. Safety & Compliance | ✅ Fire Resistance: Up to 120 minutes (certified to EN 1364-1) | |
✅ Impact Resistance: Withstands 150J+ impacts (ASTM E695) | ||
✅ Anti-Vandal: Tamper-proof screwless cladding options | ||
3. Acoustic & Functional Performance | Sound Insulation: STC 50-55 (with mineral wool core) | |
Pre-Wired Channels: Concealed conduits for power/AV | ||
Magnetic Surfaces: For tool-free whiteboard/display mounting | ||
4. Design Flexibility | Option | Application |
Perforated Panels | Ventilation + artistic patterns | |
Back-Painted Steel | Custom colors (RAL/Pantone) | |
Laser-Cut Screens | Branded logos or geometric designs |
Technical Specifications
Parameter | Specification |
Thickness | 1.5mm / 2mm / 3mm |
Panel Size | Up to 3m (H) × 1.5m (W) |
Fire Rating | 60/90/120 minutes |
Surface Finish | owder-coated, brushed metal, or patinated |
Installation | Bolt-on or modular snap-fit |
Ideal Use Cases
Industrial Facilities (Factories, warehouses)
High-Security Zones (Banks, data centers)
Commercial Interiors (Retail stores, restaurants)
Hybrid Offices (Durable team dividers)
Why Choose Steel Over Alternatives?
Feature | Steel Partitions | Glass Partitions | Drywall |
Strength | ★★★★★ | ★★☆☆☆ | ★☆☆☆☆ |
Fireproofing | ★★★★★ | ★★★☆☆ | ★★★☆☆ |
Soundproofing | ★★★★☆ | ★★★☆☆ | ★★★★☆ |
Relocation | ★★★★☆ | ★★★★★ | ★☆☆☆☆ |
Aesthetics | Industrial/modern | Transparent/minimalist | Basic |
Customization & Installation
3D Modeling: Preview designs pre-installation
Fast Deployment: 50% quicker than masonry walls
Demountable: Reuse >90% of materials
"Where brute strength meets precision engineering."
Solid partition refers to a structure built with various solid materials, used to divide space and has a certain physical barrier effect.
It is a more traditional and common way of space separation, which forms relatively independent areas in a larger space in a fixed or movable form through materials such as masonry, wood, metal, glass, etc. These solid materials are constructed into barriers with a certain thickness and height, which effectively divide and define the space. Compared with some other partition forms, solid partitions emphasize complete physical separation, which can provide clearer spatial boundaries and stronger closure. It can be permanent and firmly fixed to the building structure, or it can be flexibly disassembled and moved to adapt to different usage needs and space changes. Solid partitions not only realize the division of space in terms of function, but also can show unique decorative effects and style characteristics through the texture, color and shape of its materials.
