Product Details:
|
|
Place of Origin: | China |
---|---|
Brand Name: | Glawall |
Certification: | SGS, ISO 9001,UL, CE |
Model Number: | 108mm thickness Aluminum frameless glass partition wall |
Payment & Shipping Terms:
|
|
Minimum Order Quantity: | 10 square meters |
Price: | US$80.00 10 - 99 square meters |
Packaging Details: | wooden package |
Delivery Time: | 2-3 weeks |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union |
Supply Ability: | 3000 square maters per month |
Detail Information |
|||
Material: | Aluminum Frame+glass Panel | Transparency: | Clear |
---|---|---|---|
Customizable: | Size, Accessories | Competitive Price: | Yes |
Glass Thickness: | 10mm, 12mm | Glass Type: | Strong Tempered Glass |
Frame Material: | Aluminum | Advantage: | Competitive Price, Good Service, High Professional, Quality Guarantee |

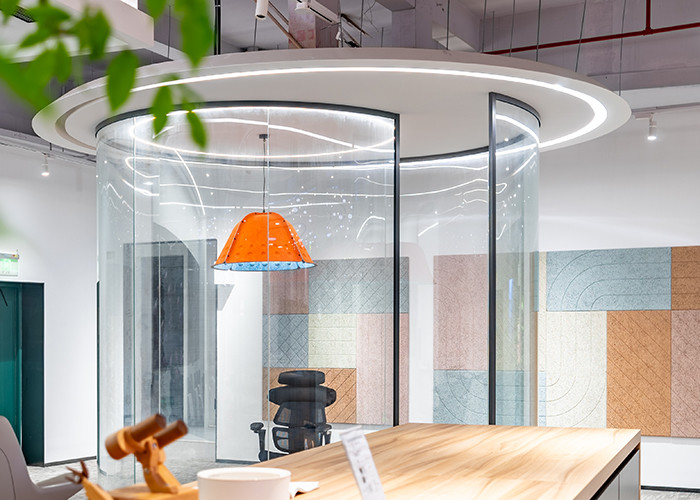

Highlight: | Daylighting Glass Partition Wall,Frameless Design Glass Partition Wall,Customized Curved Glass Partition Wall |
Product Description
Contemporary office interiors often call for glass partitions with minimal designs that promote daylighting and transparency. The Cascade Office Partition does just that. Concealed glass channels and no vertical extrusions produce expansive glass spans that are conducive to dynamic workspaces.
Glawall is a scalable glass wall solution that seamlessly defines interiors and can be customized to the specific needs of a project. The system is ideal for conference rooms, office fronts, study rooms, waiting rooms, and lobbies.
Features & Benefits
|
|
|
|
Available Finishes:
Matte Black, Bronze Anodized, Satin Anodized, Polished Brass, Polished Stainless, Brushed Stainless, Black Powder Coat
1. Architectural Transparency Redefined | ✓ True frameless design | Zero visible vertical mullions |
✓ 18ft (5.5m) maximum panel height | Uninterrupted glass spans | |
✓ Concealed channel system | Ultra-minimalist 25mm top/bottom rails | |
2. Advanced Daylight Harvesting | ✓ 98% visible light transmission (with ultra-clear glass) | |
✓ Glare control options: | Micro-patterned fritting (5-60% coverage) | |
UV-resistant interlayers | ||
3. Technical Specifications | Parameter | Performance |
Max Width per Panel | 1.8m (sliding) / 1.2m (pivoting) | |
Acoustic Rating | STC 42 (upgradable to STC 50) | |
Structural Load | 2.0kN/m² wind load resistance | |
Fire Rating | 60-120 minutes (optional ceramic glass) |
4. Premium Hardware Options | ✓ Pivoting doors: | 270° rotation capability |
Automatic floor closer mechanism | ||
✓ Sliding doors: | Silent magnetic levitation track | |
Touch-to-open smart sensors | ||
5. Luxury Finish Portfolio | Finish | Characteristics |
Matte Black | Non-reflective sophistication | |
Bronze Anodized | Warm contemporary tone | |
Polished Brass | Prestige aesthetic | |
Black Powder Coat | Matte texture with 5H hardness |
6. Smart Office Integration
✓ IoT-ready framing: | Pre-channelled for power/AV (24V DC) |
Compatible with KNX/BMS systems | |
✓ Switchable glass options: | 0.5sec transition time (clear↔frosted) |
Installation Advantages: | • Precision laser-leveling system (±0.5mm tolerance) |
• Modular components allow 30% faster install vs conventional systems | |
• Non-invasive mounting – No core drilling required | |
Recommended Applications: | ✔ Corporate headquarters |
✔ Architectural atriums | |
✔ Luxury retail environments | |
✔ Luxury retail environments |
"The Cascade System embodies the paradox of substantial presence and visual weightlessness – where architectural boundaries dissolve while spatial definition remains powerfully articulate."
Sustainability Features:
85% recycled aluminum content
Cradle-to-Cradle Certified® materials
100% dry-assembly (no on-site adhesives)
For BIM objects or daylight simulation reports, contact our design team. Would you like to explore our custom digital printing options for branded glass surfaces?
