108 Series Glass partition Wall System Soundproof Wall Partiton Wiht Aluminum Frame
108 Series Glass partition Wall System Soundproof Wall Partiton Wiht Aluminum Frame

108 Series Glass partition Wall System Soundproof Wall Partiton Wiht Aluminum Frame

Product Details:
Place of Origin: China
Brand Name: Glawall
Certification: SGS, ISO 9001,UL, CE
Model Number: 108 Series
Payment & Shipping Terms:
Minimum Order Quantity: 10 square meters
Price: US$80.00 10 - 99 square meters
Packaging Details: Wooden package
Delivery Time: 2-3 weeks
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 3000 square maters per month
Contact Now

Detail Information
Installation Method: Framed Material: Tempered Glass, Aluminum Frame, Steel, Solid, Melamine, HPL
Design Style: Modern Sound Insulation: Yes
Maintenance: Easy To Clean Transparency: Clear
Framed Material: Aluminum Door Option: Swing Door, Sliding Door, Pivot Door

Product Description

108 Series Glass partition Wall System Soundproof Wall Partiton Wiht Aluminum Frame 0

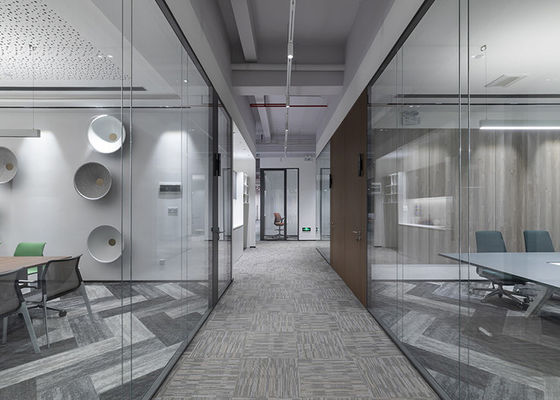

Glass partitions are trendy, sophisticated, minimalist and tasteful. Their merits include rapid installation, fire resistance, being pollution-free and odorless, having an excellent sound insulation effect, offering diverse colors and effective performance. They can be employed in conference rooms, negotiation chambers, design studios, manager's offices, large office spaces, car showrooms, and so forth.



108 Series Glass partition Wall System Soundproof Wall Partiton Wiht Aluminum Frame 1

108 Series Glass partition Wall System Soundproof Wall Partiton Wiht Aluminum Frame 2





Product Details
Glass processing: Tempering of glass and precise edge handling
Frame color: Black, white, gray, oxidized silver, and other customizable colors
Sound insulation performance: The overall partition sound insulation effect is ≥20, and the sound insulation effect of the hidden frame door is Rw+C=43db (this is a professional laboratory measured value)
Product advantages: Excellent sound insulation, strong fire resistance, moisture-proof, energy-efficient and environmentally friendly, scratch-resistant, antibacterial



Thickened tempered glass for sound and heat insulation, employing single layer 10mm/12mm finely processed tempered glass, or 5+5mm/6+6mm double layer finely processed tempered glass.



Surface spraying process
It is processed through AkzoNobel's environmentally friendly black matte powder coating process. The average thickness of a single layer of surface coating is 92um, and the salt spray corrosion resistance (120h CASSS test) is no less than 9.8.



Glass connection installation method
The glass connection utilizes highly transparent 3M acrylic strips imported from the United States. The overall appearance is exquisite and attractive, and has a highly transparent effect.



Design highlights
The design is flexible and can be customized based on the space. Customization of special shapes and arcs can be achieved. It is manifested in the overall shape of the partition system, the configuration of the panels, and the customization of the glass film.
Arc-shaped negotiation rooms, conference rooms, corporate culture glass glass film, LOGO, can be open or hidden. All are possible with the 108 models. The 108 model system has a wall thickness of 108mm and uses 10/12MM tempered glass, with high structural stability.

108 Series Glass partition Wall System Soundproof Wall Partiton Wiht Aluminum Frame 3


What is the price of office glass partitions?
We calculate the price per square meter. Nevertheless, the price varies for each individual project. Four crucial factors affect the pricing:

  1. Material and design selection;
  2. Hardware choice;
  3. Partition width and height;
  4. Acoustic performance requirement.



108 Series Glass partition Wall System Soundproof Wall Partiton Wiht Aluminum Frame 4
