Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Glawall |
| Certification: | SGS, ISO 9001,UL, CE |
| Model Number: | framed |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 10 square meters |
| Price: | US$80.00 10 - 99 square meters |
| Packaging Details: | wooden package |
| Delivery Time: | 2-3 weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 3000 square maters per month |
|
Detail Information |
|||
| Our Brand: | Glawall | Suitable For Commercial Use: | Yes |
|---|---|---|---|
| Glass Color: | Clear | Scratch Resistant: | Yes |
| Glass Color: | Green, Grey, Black , Transparent | Model: | Series 79, 90, 108mm |
| Dimension: | Customized | Shutters: | Available |
| High Light: | 48db soundproof partition wall,All steel fire protection partition wall,Indoor colorful partition wall |
||
Product Description

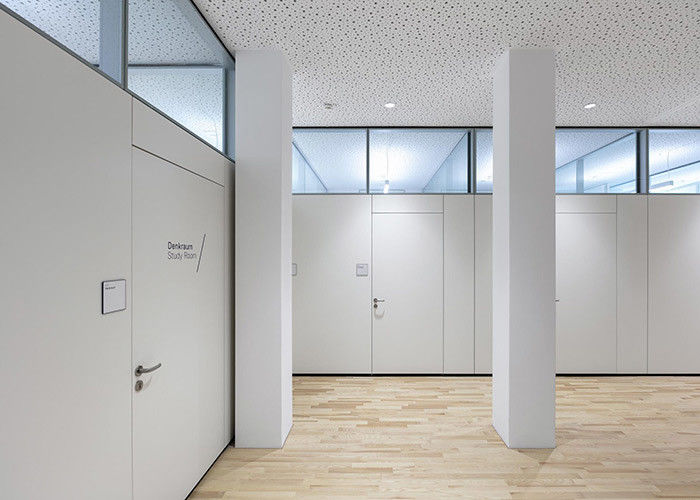

Solid wall partitions have the following salient features:
|
|
|
|
|
|
|
|
All steel fire protection series:
Stainless steel (304 material) single and double glass fireproof partitions, high-grade zinc steel single and double glass fireproof partitions
This product is an all-steel structure with a wall thickness of 70-125mm, spliced at right angles; the internal vertical and horizontal support frames of the partition are made of zinc steel profile keels; the external frame of the partition is made of 1.0mm environmentally friendly zinc steel alloy profiles or stainless steel profiles, with Class A/ Class C fire-resistant safety glass panels, ordinary safety glass panels, steel composite panels, and fire-resistant expansion sealing strip combined surface installation modules.
Basic parameters:
Wall structure: all steel system
Wall appearance: Duble glazed: wall thickness 70-125mm, upper and lower rail height 25-60mm, glass frame width 25-65mm, module spacing 6mm.
Singel glazed: wall thickness 65mm, upper and lower rail height 65mm, glass frame width 65mm.
Glass specifications: Class C safety fire-resistant glass with thicknesses of 5, 6mm, and 12mm; Class A safety fire-resistant glass with thicknesses of 25mm, 35mm, 45mm, 55mm, and 65mm.
Module specifications: 1200mm;
Limit height: top limit 3200mm
Fire resistance limit: EI120min/EI190min
Impact strength: 550Nm
Sound isolation load: 42dB-55dB
Available styles:
1. All-steel single-layer glass partition system
2. Double-layer glass partition system (optional louvers)
3.Double-layer fire-resistant glass partition system (optional blinds)
Features:
1. “Meet the fire protection requirements for glass partitions in various commercial office spaces, hospital spaces, and school spaces”
2. All-steel structure, fire-resistant integrity for 2 hours.
3. Shanghai Daige Partition all-steel fire-resistant glass partition is the third generation + fire-resistant glass partition system. A combination installation module of all-steel profiles and fire-resistant glass/all-steel panels is used for combined installation.
Compared with the first generation of frameless fire-resistant glass partitions, it has higher structural reliability and higher fire-resistant integrity performance.
Compared with the second generation welded frame fireproof glass partition, it has a more beautiful appearance and is more convenient to install. It has the same appearance as the new aluminum structure glass partition products, achieving perfect first-class quality.
All-steel structure partitions are the development direction of commercial partition systems.
