Silent cabins play a very important role in many situations, especially in places that require a high degree of quiet environment. The following are some situations where the small space of the silent cabin makes a big difference:
| Airport |
At the airport, silent cabins can provide a quiet and private waiting environment, especially for passengers who need to wait for a long time. Such a space is very important. |
| Library |
The silent cabin can provide a quiet learning environment. For readers who need to read quietly, such a small space is very important.
Hospital: In hospitals, silent cabins can provide a quiet and private resting environment. Such a space is very important for patients who need to rest.
|
| Office |
In the office, the silent cabin can provide a quiet working environment, especially for employees who need to concentrate on their work, such a small space is very important. |
| Railway stations and subway stations |
In transportation hubs such as railway stations and subway stations, silent cabins can provide a quiet and private waiting environment. For passengers who need to wait for a long time, such a space is very important. |
In short, although the silent cabin is not large in space, it plays a very important role in some occasions. It can provide a quiet, private and comfortable environment and bring people a better experience.
S size(for one person):
【S】
1. Type: 1 person booth.
2. External Dimension: W1080mm(42.5")xD1000mm(39.4")x"H2326mm(91.6")
3. Internal Dimension: W942mm(37")x"D960mm(37.79")x"H2146mm(84.5")
4.weight: 365kg
5.Floor space: 1m²
6. Materials: steel, aviation aluminum, 12mm high density fiber acoustic panel as interior, 6+6mm laminated acoustic glass, steel panel as side board. Interior fabric fiber panel use magnetic to connect, not any glue needed.
7. Sound damping mat on bottom to support the pods
8. Intelligence exhausting top fan system with switch control.
9. LED4000k light source, 230V & 50 hz , 12V-USB +USB Type C power source. German standard socket plug.
10. STC: 30db(±5db). 11. Fast assembling, can assemble and dismantle in 2 hour
M size (for 1-2 person):
【M】
1. Type: 2 person booth.
2. External Dimension:
W1600mm(63")xD1375mm(54.11")x"H2326mm(91.6")
Internal dimension:
3. Internal Dimension: W1462mm(57.6")x"D1335mm(52.6")x"H2146mm(84.5")
4.weight: 520kg
5.Floor space: 2.2m²
6. Materials: steel, aviation aluminum, 12mm high density fiber acoustic panel as interior, 6+6mm laminated acoustic glass, steel panel as side board. Interior fiber panel use magnetic to connect, not any glue needed.
7. Sound damping mat on bottom to support the pods
8. Intelligence exhausting top fan system with switch control.
9. LED4000k light source, 230V & 50 hz , 12V-USB +USB Type C power source. German standard socket plug.
10. STC: 30db(±5db). 11. Fast assembling, can assemble and dismantle in 2 hour
SL size (for 2 person):
【SL】
1. Type: 2 person booth.
2. External Dimension:
W2300mm(90.55")xD966mm(38.03")x"H2326mm(91.6")
Internal dimension:
3. Internal Dimension: W2162mm(85.11")x"D926mm(36.33")x"H2146mm(84.5")
4.weight: 520kg
5.Floor space: 2.2m²
6. Materials: steel, aviation aluminum, 12mm high density fiber acoustic panel as interior, 6+6mm laminated acoustic glass, steel panel as side board. Interior fabric fiber panel use magnetic to connect, not any glue needed.
7. Sound damping mat on bottom to support the pods
8. Intelligence exhausting top fan system with switch control.
9. LED4000k light source, 230V & 50 hz , 12V-USB +USB Type C power source. American standard socket plug.
10. STC: 30db(±5db).
11. Fast assembling, can assemble and dismantle in 2 hour

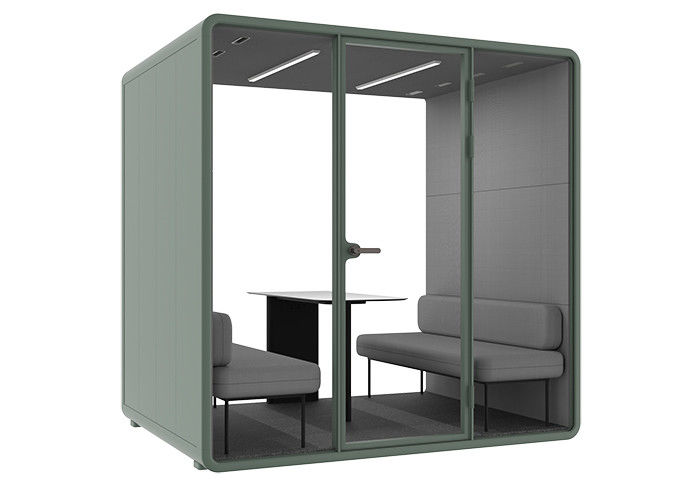

L size(for 2-4 person):
【L】1. Type: 4 seaters meeting pods
2. Exterior size: W2300*D1785*H2326mm(2.99)㎡.
3. Interior size: W2162*D1745*H2146mm.
4. Package size: 2320*1000*1265mm * 1pce, 2.93㎥.
5. Packed weight:700 kgs.
6. Materials: steel, aviation aluminum, fabric wrapped 12mm fiber acoustic board as interior, 6+6mm laminated acoustic glass, steel panel as side board. Interior fabric fiber panel use magnetic to connect, not any glue needed.
7. Hidden pulley system, can be adjusted to be removed(Optional).
8. Intelligence exhausting adjustable turbofan system.
9. LED4000k light source, 220V & 12V-USB power source + USB Type C. Customized Australia standard socket
10. STC: 35db(±5db).
XL size(for 4-6 person):
【XL】
Compatible with 100-240V/50-60HZ
Power supply system cabin 6000K/1500LM central lighting, 4000K natural light background lights on both sides
Twin turbine positive pressure fresh air system: 3 air inlets + 3 air outlets
Infrared response device + manual opening and closing
Double layer 5+5mm laminated glass
★Specification weight
Cabin outer dimensions: W2600*D2487*H2326mm cabin
Inner size:W2462*D2447*H2146mm
Cabin weight: net weight about 1000kg
Transport packaging size: 2320*900*1265mm+2600*760*1265mm
Note: The weight does not include the weight of supporting furniture/electrical appliances/equipment
