New Trand Dimming Glass Partition With Electric Atomized Glass Partitions For Meeting

Product Description

Thickened tempered glass sound insulation and heat insulation

Atomized glass is mainly composed of tempered glass, liquid crystal dimming film, transformer and other materials. Among them, tempered glass strictly follows the GB/T9963-1998 standard: This standard specifies the classification, technical requirements, inspection methods and inspection rules of tempered glass. Suitable for tempered glass in buildings, industrial equipment, etc.

Dimmable glass

Product Details
[Basic structure] Electric atomized glass partition, also called dimming glass partition, atomized glass partition smart glass partition is a new product in the partition field, consisting of atomized glass and partition supporting frame.
[Product specifications] Wall thickness 79-108mm, smart glass
[Product Features] The dimmable glass partition wall is highly flexible and can switch modes at any time.

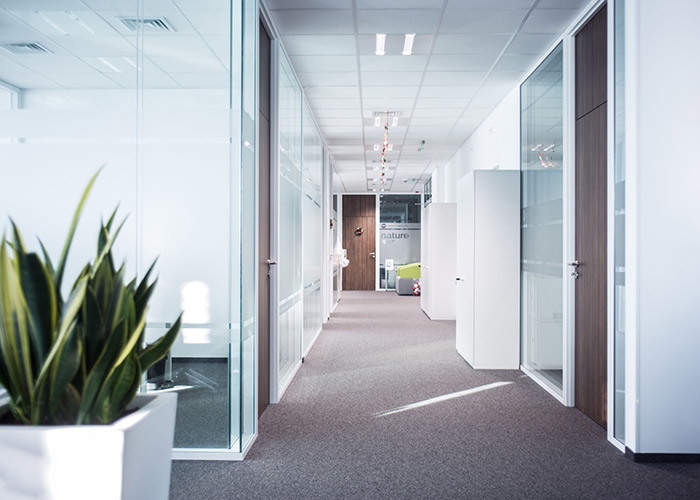

[Product Usage] Dimmable glass partition walls are mainly suitable for commercial or office spaces that require instant switching between scene openness and concealment, such as conference rooms, showrooms, etc.

【basic information】
Dimmable glass partitions are also called atomized glass partitions. Electric atomized glass partitions are also called smart glass partitions. They are a brand new form of partition and represent social development and technological progress. Unlike conventional glass partitions, which only differ in the appearance and various combinations of materials, dimmable glass partitions are an innovation and reform. Dimmable glass partitions can be electronically controlled to achieve the transparency and atomization effects of the partitions, enabling the privacy and openness of spaces to be switched at any time. It represents the application of intelligence in the field of partitions, and I believe there will be more in the future. The emergence of smart partitions, and dimmable glass partitions are just the beginning.

【introduce】
Dimmable glass partition is a form of glass partition made of electronically controlled atomized glass, existing independently or combined with an aluminum alloy or stainless steel frame.

【Product specifications】
The wall specifications of dimmable glass partitions are generally 90, 108, etc., and the conventional wall thickness is between 1.2-4mm. Since the dimmable glass is already double-layer glass plus a dimmable film, most of the dimmable glass partitions have a single-slot wall structure.

【Product Configuration】
Generally, the dimming film is added to single-layer laminated glass, double-layer 5mm+5mm - double-layer 12+12mm tempered safety clear glass or ultra-white glass.

【Technical Parameters】
The dimming glass is generally made by gluing under high temperature and high pressure, and the frame is made of aluminum alloy extruded aluminum profiles or stainless steel sheared and folded. .

【Color Appearance】
Dimmable glass is usually plain white or ultra-white, with ordinary transparency and high transparency. The conventional colors of frame profiles are black, white, silver, gray, etc. There are also many customized colors such as rose gold to choose from.

【Features】
As a typical representative form of smart partitions, dimmable glass partitions can be electrically controlled to switch between space privacy and openness. In addition, dimmable glass partitions are also explosion-proof, have good safety performance, and will not scatter fragments after rupture. , because its structure contains a dimming film, it has a certain blocking effect on sound, and the dimming glass partition also has very good sound insulation. Dimmable glass partitions also have the same detachable and reusable characteristics as other finished partitions, making them a high-quality choice among partition wall products.
