Product Details:
|
|
| Place of Origin: | China |
|---|---|
| Brand Name: | Glawall |
| Certification: | SGS, ISO 9001,UL, CE |
| Model Number: | Frameless, panorama |
|
Payment & Shipping Terms:
|
|
| Minimum Order Quantity: | 10 square meters |
| Price: | US$80.00 10 - 99 square meters |
| Packaging Details: | wooden package + bubble film inside |
| Delivery Time: | 2-3 weeks |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 3000 square maters per month |
|
Detail Information |
|||
| Design: | Demountable Wall | Door: | Glazed, Timer Solid Door |
|---|---|---|---|
| Allowance: | +-8mm | Handle: | Optional |
| Handle Length: | 1.2m, 1.5m, 1.8m, 2.0m | E Lock: | Smart Lock, Electronic Lock Available |
| Certificated: | SGS， ISO 9001 | Factory Area: | 12000 Sqm |
| Capability: | 3000 Sqm Per Month | Established Year: | 2012 |
| High Light: | Durable Demountable Glass Partitions,Double Glass Demountable Glass Partitions,Demountable Modular Office Partition Walls |
||
Product Description

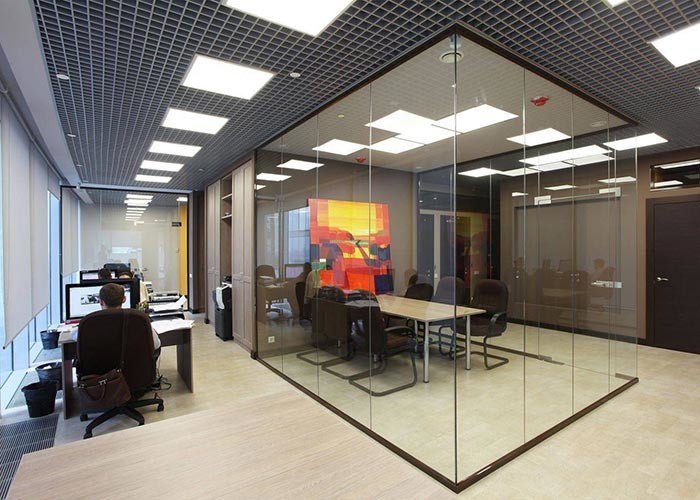

Office High End Durable Glass Demountable Partition Wall Double Glass Modular Partitions
Double Glazed Demountable Glass partition System using full height clear tempered or laminated glass 10mm or 12mm thk with central frosted film lines design complete with Anodized Aluminum Profile. The horizontal profiles are made of very thick extruded aluminum and are available with a natural anodized finish or powder coated finish or any RAL painted finish.
The generously sized base profile (108 mm) rests firmly on the floor, making the system extremely stable and rigid. The double plate version consists of four profiles joining together on the floor during assembly in order to ease front insertion of glasses and at the same time to allow a wide adjustment. A ceiling monolithic profile having same shape of base profiles and a central cladding equipped with gaskets, allows an height adjustment of +/- 16 mm.
The levelling mechanism allows both a micrometric adjustment that allows to recover differences, ensuring the perfect sealing between glass sheets. The vertical profiles on the wall are also made of extruded aluminum. They are all monolithic and make the system extremely rigid and able to withstand flexural stress thanks to direct connection to the wall and are equipped with self-expanding seals for perfect tightness.
Glawall joints between glazed modules are made with transparent polycarbonate profiles equipped with reduced thickness double-sided adhesive, or with only 1 mm thick transparent high-sided adhesive tape. The system allows to realize 90 °, "T", 4-way and variable connections. The system must allow installation of different type of glasses to reach desired Acoustic insulation 40dB to 45dB. H:280-300cms.
About Glawall factory
Glawall Building Materials is a solution-oriented business-to-business company that provides innovative efficiency systems to all types of public administrative or commercial buildings. Environment friendly is a distinct characteristic of halumm prefabricated partition system. Specially designed steel wall materials are used in Glawall prefabricated partition system with zero formaldehyde emission. In the installation site, no cutting is involved to avoid dust and noise pollution.
