China Glass Partition Wall System manufacturer

Office Fireproof Glass Room Divider Wall 90mm 108mm Fire Rated Office Glass Partitions

Product Details:
Place of Origin: Guangdong, China
Brand Name: Glawall
Certification: TUV, SGS, ISO 9001
Model Number: 79, 90, 108 series
Payment & Shipping Terms:
Minimum Order Quantity: 10㎡
Price: USD 29-110/㎡
Packaging Details: Bubble film and paper package, wooden crate
Delivery Time: 15-30 days
Payment Terms: T/T, L/C, Western Union, Paypal, D/P, D/A
Supply Ability: 3000㎡/month

Detail Information

General Use: Commercial Building Furniture Application: Fireproof Glass Partition
Style: Modern Style Materials: Metal Steel Frame + Fire Rated Glass
Size: Customized Size As Per Drawing Certificate: Whole System Fire Proof Certificate
Fire Rated: Up To 120min Finish Surface: Steel Frame + Fire Rated Glass
Wall Profile: 90, 108mm Thick Sound Insulation: 42-48db
High Light:

Fireproof Glass Room Divider Wall

,

Office Glass Room Divider Wall

,

108mm Fire Rated Office Glass Partitions

Product Description

Product descriptions

Firescreens Ideal for common areas, staircases and along escape routes Glawall’s Specialist Glazing team create, supply and install a range of fire rated glass partitions, screens and doors. Alongside this, the team also create internal glazing features from support walls through to floors, balustrading and staircases to meet project requirements.

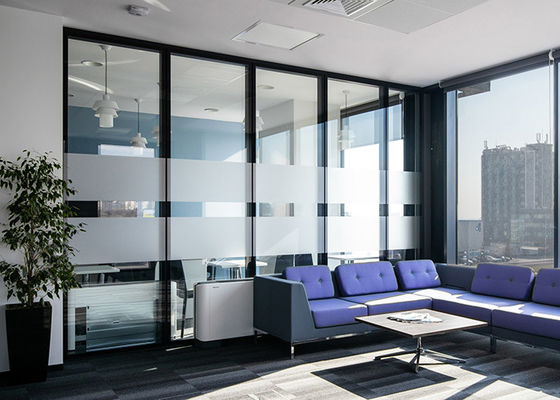

Office Fireproof Glass Room Divider Wall 90mm 108mm Fire Rated Office Glass Partitions 0

As well as providing a fire rating of up to 2 hours, our internal glazing and firescreens have impressive acoustic ratings of up to 48dB (Rw) along with robust structural performance. This quality of performance means that our systems can be used in

diverse environments and exceed client’s expectations.



Design features Fire rated screens dividers
Series GW fire rated system
Surface options  Fire rated glass or steel
Glass thickness 6mm , 12mm fire rated glass
Application Office and conference room
Panel thickness 90, 108mm
Built-in doors Single glass and double glazed doors, solid doors
View Transparent, colored or frosted glass, blinds intergrated between the glass panels
Noise reduction coefficient STC 45 db
Fire resistance performace  30 -120 min

Office Fireproof Glass Room Divider Wall 90mm 108mm Fire Rated Office Glass Partitions 1

GW fireproof series

GW Fire rated series is steel stud and plasterboard construction system surrounded by an aluminium framework. This system offers a distinct angular style and incorporates acoustic and fire performance. There are two variations within our range, including Glawall 90 and 108. GW 90 is 90mm square edge framed system which is compatible with glazed and timber door. This system is available in a solid, single and double glazed structure with pre-assembled window frame options. Durable and simple to install and maintain, GW 90 sets the standard of partition form and function, achieving acoustic ratings of up to 43dB (Rw) and a fire rating of up to 30/0 for the glazed system.

Fire rated glass partition wall



Producsts Packing:
A. PE foam inside protecting material.
B. Corner covering for all aluminum materials.
C. Separated pp bag for hardware fitting inside.
D. Glass parts are packed by wooden frame to avoid fragile

Aluminum partition wall package
